Nondestructive testing
It combines the practical skills of nondestructive inspection service providers and the technical skills of existing equipment manufacturers.
Company Introduction
It was established to help inspection companies and asset owners make the most of the potential and sophisticated inspection tools of inspection staff with expert support and guidance.
Why NDT Korean groups?
Multi-disciplinary experts
of NDT Korean Group has a highly technical workforce with various skills and capabilities such as::
* 3rd and 2nd class inspectors with years of field experience and direct knowledge of regulatory requirements.
* Unique expertise in induction waves,fautes and other advanced nondestructive testing techniques.
* Researchers with PhDs who have tools and experience for advanced data analysis.
* Hardware and software engineers develop and customize verification tools and processes.
* Certified teacher for judo wave, Faut/Topdi and other advanced nondestructive testing techniques
Features
Magnetic deformation tape material can be cut to diameter. It is not necessary to have separate rings for different diameters. The strip weighs less than 1 kg and fits into a small backpack.
Standard equipment includes all pipe grades up to 24 inches in diameter. Additional tape sensors can be used for diameters up to 48 inches or more.
Very fast and fast installation. No need to pressure the sensor. The surface requires only light sanding, and inspection can be carried out even on painted surfaces.
Low profile for places with limited access. This is especially true for pipe overpasses, where the distance between them is limited.
One sensor along the entire perimeter of the pipe significantly reduces the cost of maintenance,spare parts and repairs.
Better signal-to-noise ratio compared to piezoelectric rings(+10-20 decibels).
Axisymmetric rings provide uniform wavelengths with minimal blind spots(more uniform sound loads in pipes).
Fast pipe filtration with single axisymmetric collar. Extra focus with separate receiver and scanner.
You can perform an inspection using this device.
High temperature tensioner inspection 300.
Non-Destructive Testing is a technology that inspects · determines the incompleteness of the object to be inspected without damaging the object to be inspected using the principle of physical phenomena, and inspects the internal structure of the part and the accept · reject of defects.
🎯 Method of Non-Destructive Testing

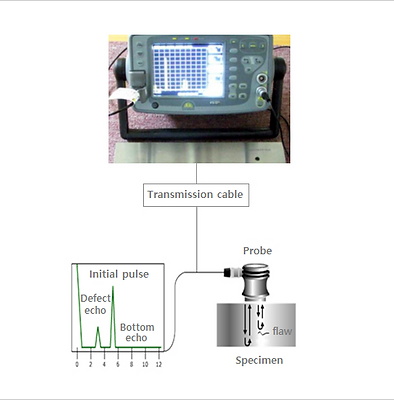

Ultrasonic Testing
Principle and Method
Ultrasonic Testing is a method to evaluate the location and size of the discontinuity by analyzing the ultrasonic information reflected from the discontinuities present inside the test specimen by transferring generated ultrasonic waves to the test specimen using piezoelectric materials.
This is used for the detection of internal defects, the depth and position of defects are easily measured, and the penetration power is excellent.
Scope
-
Steel pipe weld and material inspection
-
Inspection of automobile parts
-
Rail vehicle axle / wheel inspection
-
Inspection of aerospace material connection
